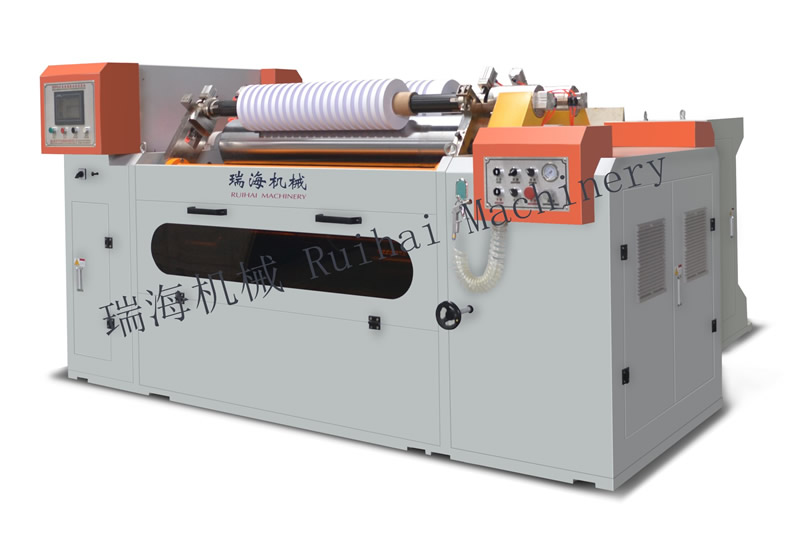

BDFQ-D Slitting and Rewinding Machine For Surface Rolling

Name：BDFQ-D Slitting and Rewinding Machine For Surface Rolling
No：BDFQ-D

Performance and Characteristics

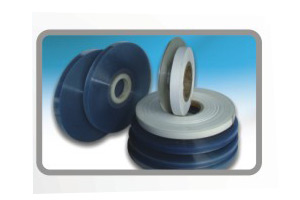

This machine is suitable for slitting rolling materials such as paper, aluminum foil, PVC, plastic film, insulation material, etc.
This motor is equipped with frequency converter timing device, constant tension magnetic powder control system for unwinding, photoelectric auto error-correction , two pieces magnetic powder clutches, main motor for controlling the center rewinding can be touched with surface, double shafts rewinding interlaced without meeting. It also has the function of meter can be setup in advance and auto stop working, etc.

Main Technical Parameters

Model	BDFQ-900D	BDFQ-1100D	BDFQ-1300D
Max diameter of unwinding	900mm	1100mm	1300mm
Max diameter of rewinding	￠1400mm	￠1400mm	￠1400mm
Max width of rewinding	￠600mm	￠600mm	￠600mm
Min. width of slitting	5mm	5mm	5mm
Total Power	6.5kw	6.5kw	8.5kw
Weight	1400kg	1600kg	1800kg
Overall dimension	3800×1500×1500(mm)	3800×1700×1500(mm)	3800×1900×1500(mm)
