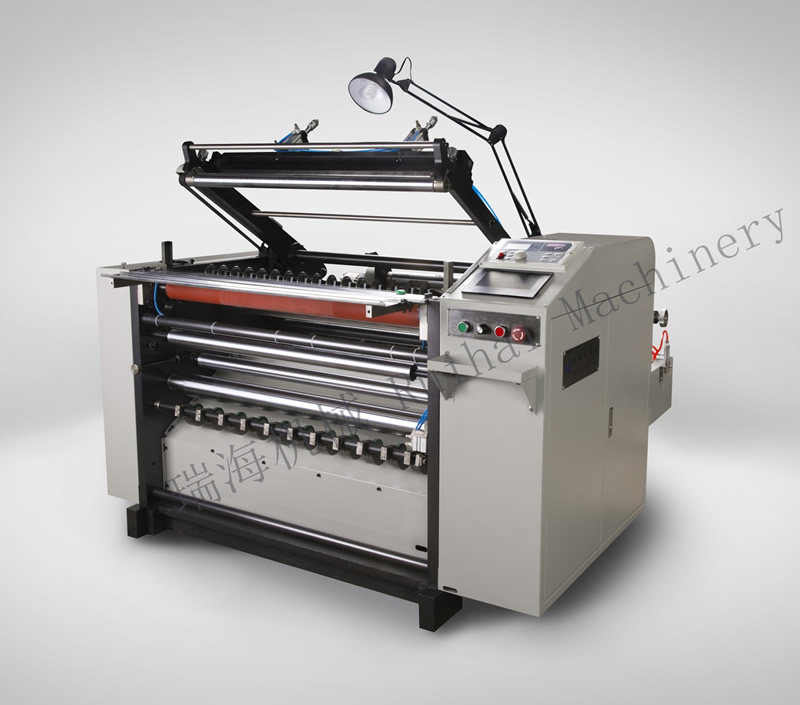

AZFQ Fax PaperSlitting Machine

Performance and Characteristics
This machine is suitable for slitting fax paper with different gage, cash paper,billpaper film, self-adhesive,trademark, various paper (≤150 g/m2).
This machine is in the style of surface rewinding, which has the functions of easy operation, high-precision, rewinding trimly, with frequency converter timing device, photoelectric error-correction device, meter/count display as well as auto stop working. It's the advanced equipment for slitting in the domestic and overseas market.

Main Technical Parameters

Model	CZFQ-700	CZFQ-900
Max. diameter of unwinding	￠600mm	￠600mm
Max. width of slitting	700mm	900mm
Max. diameter of rewinding	￠100mm	￠100mm
Speed	12-120m/min	12-120m/min
Total power	5.5kw	5.5kw
Weight	1500kg	1700kg
Overall dimension(L×W×H )	2000×1700×1100(mm)	2000×1900×1100(mm)
